Separate Electric Power Slip Ring with Two half style Rotary Joint for robot
SCN035-04P1 is CENO separate slip ring, that is suitable for high-end industrial and technological fields that require high convenience, maintainability, and modular design, and solves the installation and maintenance difficulty of traditional slip rings. No need to thread the equipment shaft during installation, avoiding the trouble of disassembling the entire equipment. This realizes the “ install first, then dock split installation process. For more information please contact us
Specification
| SCN035-04P1 Specification |
| Current & Circuits | 4 circuits * 3A |
| Rating Voltage | 0 ~ 380 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Contact resistance wave | ≤ 30mΩ |
| Working temperature | -20°C~+80°C |
| Working humidity | 60 %RH |
| IP protection grade | IP00 |
| Operating speed | 0~300rpm |
| Inner diameter | Ø35mm |
| Outer diameter | Ø61mm |
| Contact material | Precious Metal |
| Housing material | Aluminium Alloy |
| Lead wire size | As customized |
| Lead wire length | As customized |
Features
- High reliability, design flexibility
- Avoids cable entanglement & supports multi media transmission
- Through hole 3~980mm optional
- Install easy & Free maintenance
Applications
- Machine tools
- Turntable testing machine
- Packing equipment
- Roller test benches
- Radar masts
Optional
- Circuit, Voltage, Current
- Signals and data
- Contact / Housing Materials
- Inner / outer diameter
- Working speed & temperature

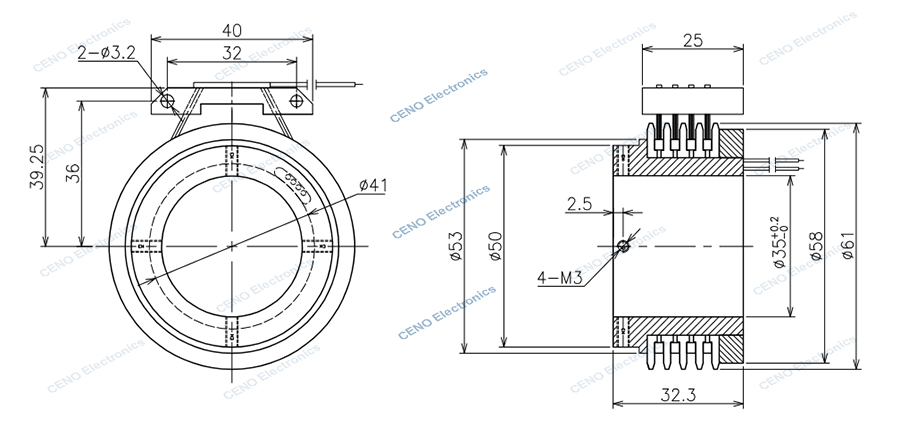

Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
|
|
