Integrate Pneumatic hydraulic rotary union slip ring with profinet signal

Brand Name : CENO

Model Number : QCN0103-06P-03EM-1

Certification : ISO9001,CE,RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 1000pcs per month

Delivery Time : 2 weeks

Packaging Details : Carton

Current & Circuits : 4*32A; 2*16A; 3* Profinet

Rating Voltage : 0~400 VAC/VDC

Dielectric strength : ≥1000VAC@50Hz; ≥300VAC@50Hz

Isolation resistance : ≥500MΩ@500VDC; 100MΩ@300VDC

Contact resistance : 30mΩ (50rpm)

Contact material : Precious metal / Gold to Gold

Housing material : Aluminum Alloy

Working temperature : -20°C~+60°C

Working humidity : 60 %RH

IP protection grade : IP54

Operating speed : 0~50rpm

External diameter : Ø86mm

The road : 1 Channel Air

Pressure : 8 Bar

Torque : ≤ 8N*m

Interface size : G3/8” Ø10mm tube

Contact Now

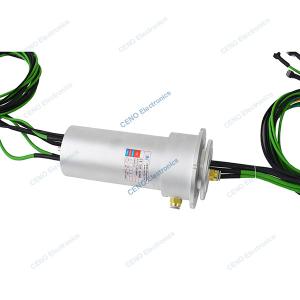

Integrate Pneumatic hydraulic rotary union slip ring with profinet signal

QCN0103-06P-03EM-1 is CENO integrate pneumatic rotary union integrate electric power, profinet signal and 1 channel air with pressure 8 Bar designed for the industry robots. CENO have designed hundreds type of integrate pneumatic hydraulic rotary unions during past twenty years. Most parameters can be customized for special application, such as the integrated signals, transmission media, air pressure and out structure etc, for more information about CENO integrate slip rings please contact us.

Features

  • Supports synchronous transmit of power, signals and media.
  • High quality and Precision processing & comply with EMC
  • Can be integrated various data

Applications

  • Automatic machine
  • Industry robots
  • Intelligent & control system
  • Multi-function equipment
  • Medical equipment

Optional

  • Circuit, Voltage, Current
  • Sealing type and IP Grade
  • Media and Materials
  • Integrate signal date type
  • Working speed & temperature

Specification

QCN0103-06P-03EM-1

Specification
Circuits & Current 4*32A; 2*16A; 3* Profinet
Rating Voltage 0~400 VAC/VDC
Dielectric Strength ≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance ≥500MΩ@500VDC; 100MΩ@300VDC
Electrical Noise 30mΩ (50rpm)
Lead wire length As customized
Working speed 0~50 rpm
Rotation Way Flange installation
Installation Way Contact material: Gold to gold / precious metal
Housing material Aluminum Alloy
Protection IP54
Working humidity 60%
Working temperature -20℃ ~+60℃
Rotary Joint
Channel 1 channel* Air
Interface size G3/8” Ø10mm tube
Pressure 8 Bar
Rotation Torque ≤ 8N*m

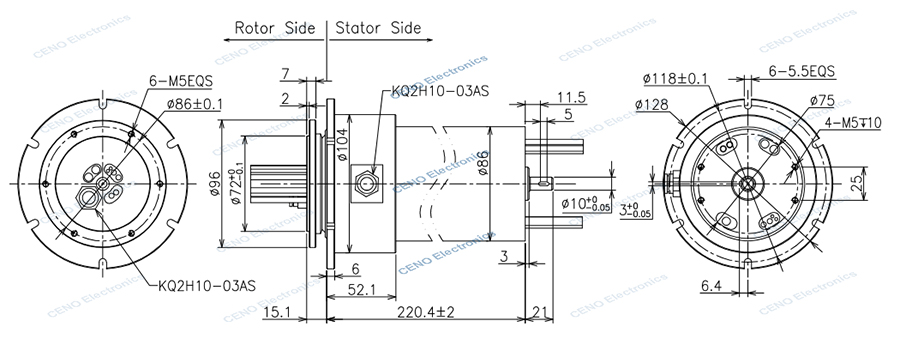

Outline Drawing

Integrate Pneumatic hydraulic rotary union slip ring with profinet signal

Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.

FAQ

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?

CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Integrate Pneumatic hydraulic rotary union slip ring with profinet signal

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Integrate Pneumatic hydraulic rotary union slip ring with profinet signal

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
