ID 60mm Through Hole Slip Ring With Rotary Electrical Joint For Industry

Name: ID 60mm Through Hole Slip Ring With Rotary Electrical Joint For Industry
Brand: CENO
Price: 1 USD

Brand Name : CENO

Model Number : ECN060-02P1-08S

Certification : CE,RoHS,ISO9001,UL

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 1000pcs per month

Delivery Time : 1 week

Packaging Details : Carton/As request

Current & Circuits : 3*5A, 8*Signal

Rating voltage : 0~380 VAC/VDC

Dielectric strength : ≥5000VAC@50Hz (Current) ≥300VAC@50Hz (Signal)

Isolation resistance : ≥500MΩ@500VDC (Current) ≥100MΩ@300VDC (Signal)

Operating speed : 0~100rpm

Contact material : Precious metals

Housing material : Aluminum alloy

Working temperature : -20°C~+60°C

Working humidity : Max60%

IP protection grade : IP51

Through hole size : Ø60mm

Lead wire size : AWG22#Wire Teflon® UL

Lead wire length : Rotor : 300mm Stator : 300mm

Installation way : Fix up stator side with anti-rotation side shaft drives rotor running

Contact Now

Through Hole Slip Ring With ID60mm Rotary Electrical Joint For Industry

ECN060-02P1-08S is CENO’s new through hole slip ring which combine 2 circuits for 5A and 8 circuits signal for industrial application. It’s also named through bore slip ring, hollow shaft slip ring, rotary electric joint or electrical collector. Widely used to various industry equipment, civilian & agricultural machinery, even defense and aerospace. Most of the parameter are optional, we have over than 5000 designs. For more information about how CENO’s slip ring can fit your specific applications, please contact us freely

Features

Quiet mechanical system work
Through hole diameter 3mm-2000mm are optional
Can be integrated various data
Install easily & transmit stably

Applications

Automatic machine
Industry equipment
Packing machine
Harsh environment
Mines / Mountain areas

Optional

Circuit number & Current
Boundary dimension
Contact / Housing Materials
Protection grade
Working speed

Specification

ECN060-02P1-08S	Specification
Current & Circuits	2 circuits * 5A, 8 circuits * Signal
Rating Voltage	0~380VAC/VDC
Dielectric strength	≥5000VAC@50Hz (Current) ≥300VAC@50Hz (Signal)
Isolation resistance	≥500MΩ@500VDC (Current) ≥100MΩ@300VDC (Signal)
Operating speed	0~100rpm
Contact material	Precious Metal
Housing material	Aluminum Alloy
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP51
Lead wire size	AWG22#Wire Teflon®UL
Lead wire length	Rotor : 300mm Stator : 300mm
Inner diameter	Ø60mm
Installation way	Fix up stator side with anti-rotation side shaft drives rotor running

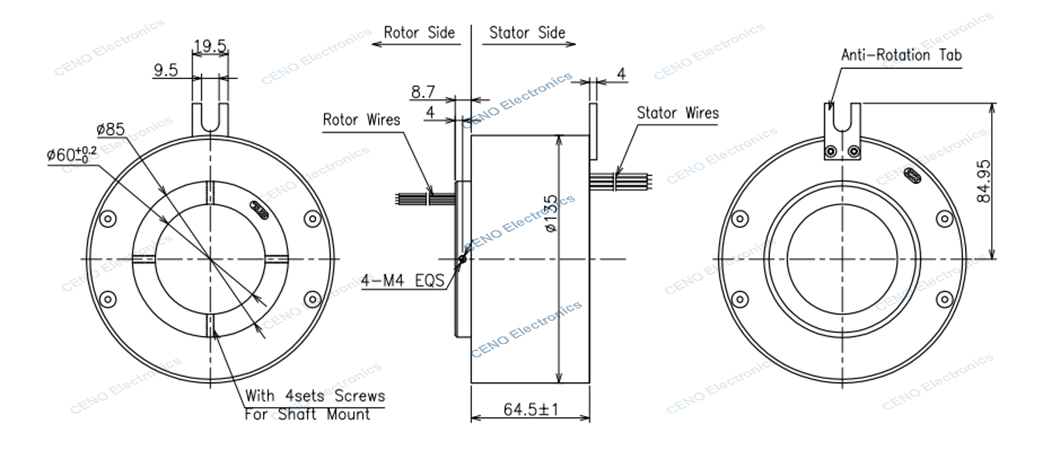

Outline Drawing

ID 60mm Through Hole Slip Ring With Rotary Electrical Joint For Industry

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

ID 60mm Through Hole Slip Ring With Rotary Electrical Joint For Industry

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

ID 60mm Through Hole Slip Ring With Rotary Electrical Joint For Industry

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

ID 60mm Through Hole Slip Ring With Rotary Electrical Joint For Industry

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
