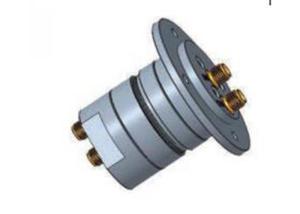

Dual-Channel Rotary Joint RCN0204B belongs to CENO's RCN series product, RF rotary joint adopt the principle of skin effect of high frequency signal and the structure simulation of coaxial cable. RCN0204B radio frequency slip ring has 2 channel SMA-F(50Ω) connector and the Frequency is DC-4.5GHz. The body material is Aluminum alloy with conductive anodizing surface treatment. It has compact structure and the net weight is 130g only, has strong anti interference ability and the insertion loss maximum is 0.25dB in channel1 and 0.5dB in chaneel2. CENO's RCN0204B radio frequency rotary joint transmit stably and it is easy to integrated with other equipment, related specification is the voltage standing wave ratio maximum is 1.2dB & 1.5dB. CENO's RCN series product mainly applied to rotary antenna systems.
Specification
| RCN0204B | Channel 1 | Channel 2 |
| Interface type | SMA -F(50Ω) | SMA -F(50Ω) |
| Style | 1 | 1 |
| Frequency | DC-4.5GHz | DC-4.5GHz |
| Peak power,max | 1KW | 1KW |
| Average power,max | 100W@DC-2GHz/ 60W@2GHz-4.5GHz | 10W |
| Voltage standing wave ratio,max | 1.2 | 1.5 |
| Voltage standing wave ratio floating, maximum | 0.05 | 0.2 |
| Insertion loss,max | 0.25dB | 0.5dB |
| Insertion loss floating, max | 0.05dB | 0.15dB |
| Isolation, min | 50dB | 50dB |
| Phase stability, max | 1deg | 4deg |
| Working speed,max | 30rpm |
| Lifetime,min | 5 Million rotation |
| Starting Torque,max | 0.05Nm@ normal temperature |
| Using Torque,max | 0.05Nm@ normal temperature |
| Material | Aluminum alloy |
| Surface treatment | Conductive anodizing ( Chromate conversion coating ) |
| Net Weight | 130g |
| Working temperature | -40°C~70°C |
| Storage temperature | -55°C~85°C |
| IP Grade | IP60 |
| Humidity,max | 95% |
Features
• Easy integrated with other equipment
• Long lifetime
• Transmit stably
Applications
• Rotary antenna systems
• Radio location
• Agricultural Aircraft
Optional
• Channel number
• Working speed & IP grade
• Frequency
• Connector

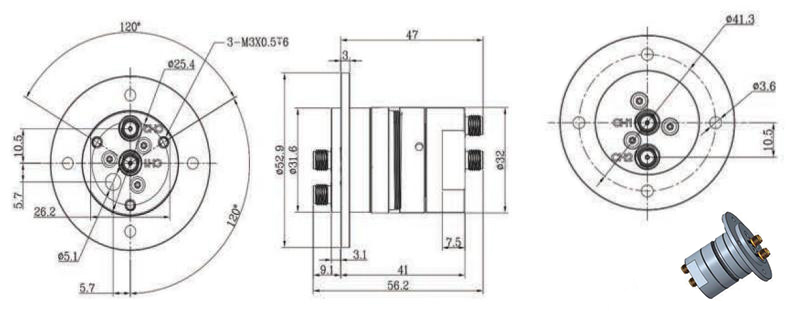

Outline drawing
