Precious Metal IP52 60 Rpm Industrial Slip Ring For Medical Machine
Customized slip ring integrated power & signal,black aluminium housing,working speed 0~60 rpm,used for medical machine.
CENO is a technical manufacturing company. Its has abundant experience in design and assembling for specific industries.Can provide you with customized products according to your demands.ECN000-16P-26S is a customized slip ring with blind inner bore,integrated power & signal lines.Also can integrate Ethernet, USB ,Encoder, BUS serial communication, temperature sensing and control applications. Waterproof grade can reach to IP65,IP67,IP68.CENO ECN series slip ring means with inner bore size from 3mm to 980mm ,CENO can provide many parameters for customer to choose ,such as outer diameter, inner diameter ,current,circuit numbers etc.
Specification
| ECN000-16P-26S | Specification |
| Circuits & Current | 6*15A,6*10A,26*Signal |
| Voltage | 0~240VAC/VDC |
| Dielectric strength | ≥1000V@50Hz (power) ≥500V@50Hz (signal) |
| Insulation resistance | ≥500MΩ@500VDC (power) ≥300MΩ@100VDC (signal) |
| Electrical noise | ≤30mΩ (50 rpm) |
| Operating speed | 0-60 rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy (black color) |
| IP grade | IP52 |
| Inner hole size | Blind inner hole |
Features
- Compact structure
- Flexible installation
- Smooth rotation and stable
- Low friction, long life
- Power integrated signal
Applications
- Engineering machinery
- Marine applications
- Cable reels
- Industrial application
- Automation equipment
- Excavator
- Motion simulator
Optional
- Circuit number
- Current rating
- Rotation way
- Through hole size
- Signal type
- IP protection grade
-
Wire length

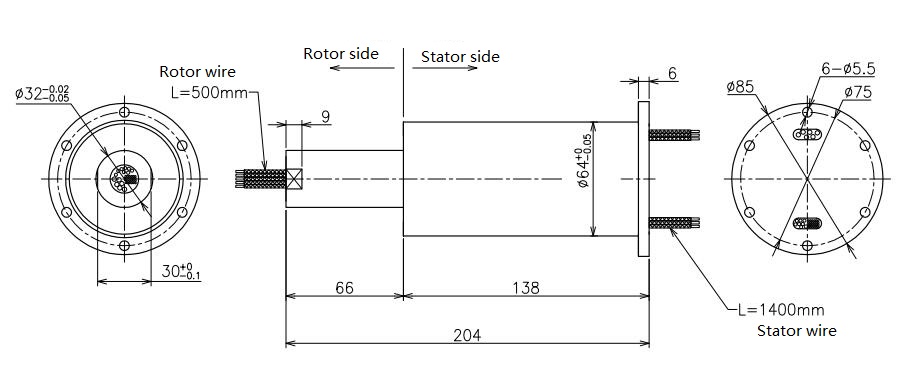

Outline Drawing
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
FAQ
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.
3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
