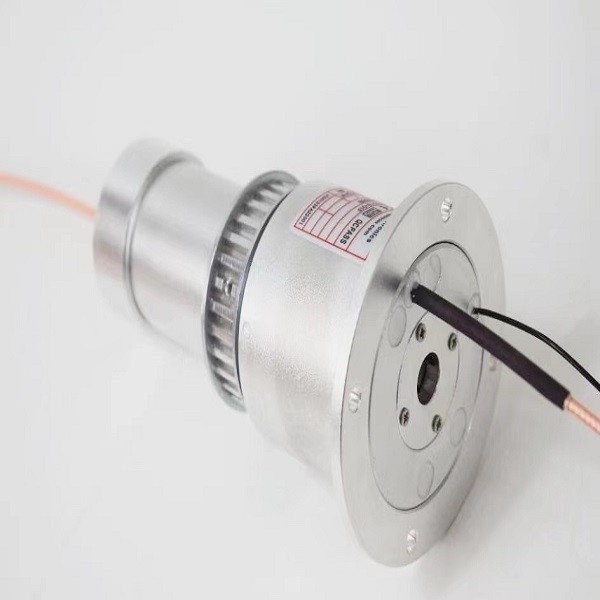

RG316 Cable Fiber Optic 2000rpm RF Slip Ring For Radar System
2000rpm Radio Frequency Rotary Joint SlipRing with RG316 cable &Fiber optic ,used for radar system,Robotics cameras.
ECN000-01S-01F is a high definition signal slip ring integrated fiber optic ,developed by CENO Electronics, which taking the lead of originality in its area with advanced design idea and manufacturing technology. Stable transmission of HDMI video signal, certified by stringent tests and acknowledged by customers It is perfectly applied to video surveillance field that transmits HD video signal and other signals in 360° continuous rotation. It is of high quality and reliability.Typical application including robotics ,cameras,radar antennas,military industry.It’s a solid RF Coaxial rotary joint,also named high frequency rotary joint, wave guide rotary joint.CENO can make special design according customer's request,please contact with if you have any remind,or check with www.ceno360.com,we will provide you with the best solutions .
Specification
| ECN000-01S-01F | Specification |
| Circuits | 1*RG316 coax cable,1*Fiber optic |
| Voltage | 240VAC |
| Electrical noise | ≤70mΩ(30rpm) |
| Dielectric strength | ≥500V@50Hz |
| Insulation resistance | ≥100MΩ@100VDC |
| Operating speed | 0~2000 rpm |
| Contact material | Precious metal |
| Housing material | Aluminium alloy |
| IP protection grade | IP54 |
| Frequency range | 100M |
| Insertion loss | <1dB |
| VSWR | <1.5 |
Features
- 0~2000 rpm working speed
- Compact structure
- With RG 316 cable & fiber
- Light weight
Applications
- High definition network
- Satellite communication
- Military industry
- Radar antennas
- Robotics cameras
Optional
- Circuits number
- Frequency range
- Interface type
- IP protection grade
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
