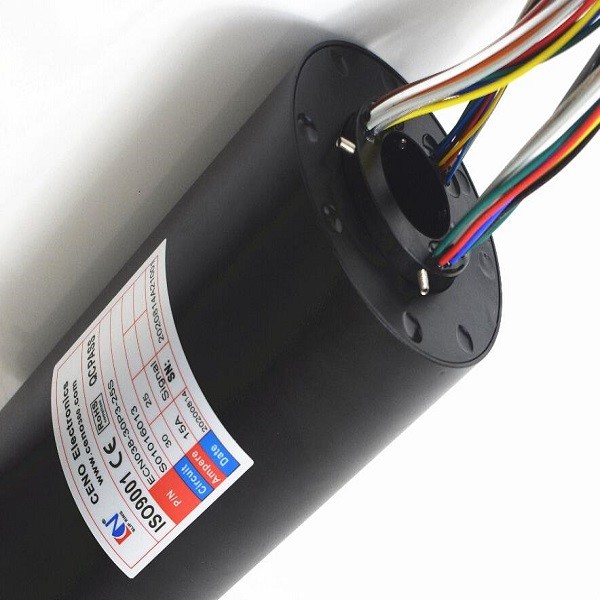

Low Loss IP54 300rpm 38.1mm Through Hole Slip Ring

  • 1
  • 2

Brand Name : CENO

Model Number : ECN038-30P3-25S

Certification : CE,RoHS,ISO9001,UL

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 500pcs per month

Delivery Time : 1 week

Packaging Details : Carton/As request

Circuits : 30*15A,25*Signal

Through bore size : 38.1 mm

Protection Grade : IP54

Working speed : 0~300rpm

Contact material : Precious metal

Rating Voltage : 0~380VAC/VDC

Housing material : Aluminium alloy sandblasted black oxide

Typical application : Automation equipment

Contact Now

Low Loss IP54 300rpm 38.1mm Through Hole Slip Ring

38.1mm through hole slip ring used for large engineering equipment,30*15A,25*Signal

This is a hollow shaft slip ring ,it’s also called through hole slip ring ,CENO's hollow shaft slip ring hole size from 3mm to 5000mm are optional.Standard through hole size are 12.7mm, 25.4mm, 38.1mm, 50mm, 60mm,70mm, 80mm, 100mm .and all other size are capable to be customized.the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints.

Specification of ECN038-30P3-25S

Rings 30*15A,25*Signal
Voltage 0~380VDC
Electrical noise ≤30mΩ(50rpm)
Dielectric strength

≥1000V@50Hz(power)

≥300V@50Hz(signal)

Insulation resistance

≥500MΩ@500VDC(power)

≥100MΩ@100VDC(signal)

Operating speed 0-300 rpm
Contact material Precious metal
Housing material Aluminium alloy sandblasted black oxide
IP protection grade IP54
Through hole size 38.1 mm

Features

  • No package loss,no cross talk,low loss
  • Low friction, long life,low torque, smooth rotation
  • Anti-rotation tab for fixing stator side ,easy to install
  • Transmit analog and digital signal
  • The power and signal are mixed transmitted, and the signal categories
  • Long service life, maintenance-free
  • Easy to install

Applications

  • Motion simulator
  • Large engineering equipment
  • Automation equipment
  • Medical equipment
  • Wind power equipment
  • Test equipment

Optional

  • Through hole size
  • Current rating
  • Integrate various signal
  • IP protection grade
  • Signal type

Outline drawing

Low Loss IP54 300rpm 38.1mm Through Hole Slip Ring

Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.

FAQ

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?

CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Low Loss IP54 300rpm 38.1mm Through Hole Slip Ring

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Low Loss IP54 300rpm 38.1mm Through Hole Slip Ring

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
