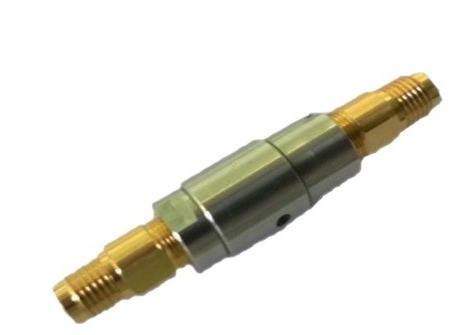

Copper Alloy 1KW DC To 67 GHz 300 Rpm RF Rotary Joint

Brand Name : CENO

Model Number : RCN0167B

Certification : ISO9001,CE,RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal,, Western Union

Supply Ability : 500pcs per month

Delivery Time : 1 week

Packaging Details : Carton

Channel number : 1

Frequency : DC to 67 GHz

Interface type : 1.85-f (50 Ω)

Interface orientation : Style I

Body material : copper alloy

Peak power,max : 1KW

DC carrying : 0.2A

Rotating speed : 200rpm -300 rpm

Weight : 0.03kg

Contact Now

Copper Alloy 1KW DC To 67 GHz 300 Rpm RF Rotary Joint

1KW Radio Frequency Rotary Joint

CENO's RF rotary joint belongs RCN series. RF rotary joint design adopts the principle of skin effect of high frequency signal and the structure simulation of coaxial cable. To ensure RF rotary joint with the high frequency signal low damage and reliable transmission,CENO uses import high elastic wear-resisting material in the internal key contact point of the RF rotary joint and do special plating in the surface for it. It is a connector device to transmit high frequency signal from the static to rotating part.

Radio frequency characteristics

Interface type /

material / surface finish

1.85-f (50 Ω) / copper alloy / gold plated
Interface orientation Style I
Frequency range DC to 67 GHz
Peak power capability 1 kW @ 2.000 m if not pressurized
Average power capability

10 W @ DC to 10 GHz / 5 W @ 10 to 26 GHz

3 W @ 26 to 50 GHz / 1 W @ 50 to 67 GHz

VSWR, max.

1.1 @ DC to 10 GHz / 1.2 @ 10 to 26 GHz

1.3 @ 26 to 50 GHz / 1.4 @ 50 to 67 GHz

VSWR variation over rotation,

max.

0.02 @ DC to 10 GHz / 0.04 @ 10 to 26 GHz

0.08 @ 26 to 50 GHz / 0.10 @ 50 to 67 GHz

Insertion loss, max

0.2 dB @ DC to 10 GHz / 0.3 dB @ 10 to 26 GHz

0.4 dB @ 26 to 50 GHz / 0.5 dB @ 50 to 67 GHz

Insertion loss variation over

rotation, max.

0.02 dB @ DC to 10 GHz / 0.04 dB @ 10 to 26 GHz

0.08 dB @ 26 to 50 GHz / 0.10 dB @ 50 to 67 GHz

Phase variation over rotation,

max.

1 deg. @ DC to 10 GHz / 2 deg. @ 10 to 26 GHz

3 deg. @ 26 to 50 GHz / 4 deg. @ 50 to 67 GHz

DC carrying capability 0.2 A

Mechanical characteristics

Rotating speed,

max. / nominal

300 / 200 rpm
Life, min. 0.2 x 106 revolutions

Torque (room / min.

temperature), max.

0.5 Ncm / - @ start-up

0.5 Ncm / - @ rotation

Interface loads, max.

±0.5 N in axial direction

±0.5 N in radial direction

Case material copper alloy and stainless steel
Case surface finish partially gold plated
IP protection level IP50
Weight, approx. 0.03 kg
Marking adhesive label

Environmental conditions

Operation
Ambient temperature range -40 to +60°C
Relative humidity, max. 95% (non-condensing)
Storage
Ambient temperature range -55 to +80°C
Relative humidity, max. 95% (non-condensing)

Features

  • Stable performance and high reliability
  • Integrated RF rotary joint
  • Apply to RF signal and high data speed rate transmission

Applications

  • Simulation tester
  • Antenna system
  • Traffic control system


Optional

  • Circuit number
  • Installation way
  • Radio frequency range

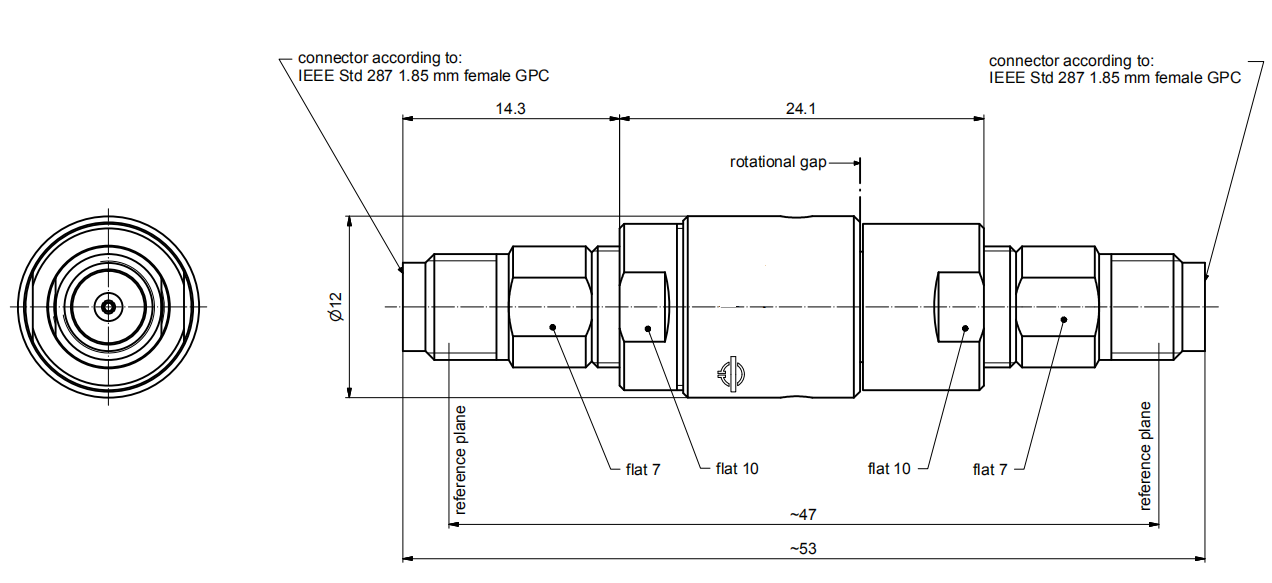

Outline Drawing
