Hybrid Rotary Joint Combined Power Fiber Optical Gigabit
This is hybrid rotary joint, it consists of power part,signal part ,Gigabit Ethernet signal and fiber optical.obviously ,one fiber optical single mode channel with low insertion loss but high return loss. one channel Gigabit Ethernet signal combine power channels.,stable transmission,no package loss, no cross talk,low loss,reliable performance. for the shape structure,we can see housing material is aluminum alloy with solid shaft structure.
Specification
| ECN000-06P-26S-01EG-01F |
| Current | 6*40A,1*PE,2*RS422,1*RS232,5*3A,4*signal, 1*Gigabit Ethernet,1*fiber optical |
| Voltage | 0~240VAC/VDC |
| Dielectric strength | ≥1000V@50Hz(power) ≥300V@50Hz (signal) |
| Insulation resistance | 500MΩ@500VDC(power) 100MΩ@300VDC(signal) |
| Operating speed | 0-20 rpm |
| Contact material | gold to gold |
| Fiber type | SM |
| Connector | FC/FC |
| Insertion Loss,max | 1.5dB |
| Return Loss,min | 30dB |
Features
- Integrate fiber optic ,Ethernet with power slip ring
- Transmit data and analog signal,compatible with data bus protocol
- Low insertion loss but high return loss
Applications
- Radar antenna
- Automation equipment
- Motion simulation test equipment
Optional
- Circuit number
- Current rating
- Signal type
- Fiber optical type

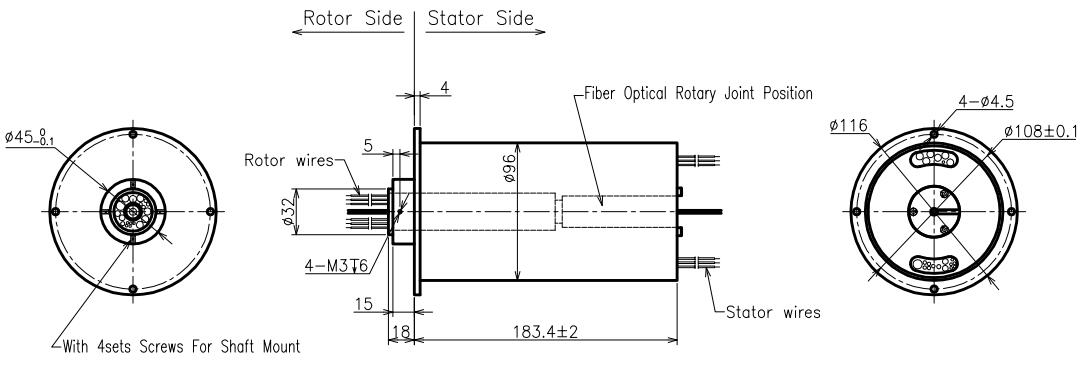

Outline drawing
