Through Bore Slip Rings With Bore 25.4mm Precious Metal Contacts Providing High Hard Wearing
Miniature through bore slip ring has compact size with a hole in the center. The central hole's diameter is 12mm, 25mm, 38mm and so on. The number of circuits can be 6-36. Many other circuits are optional ,which can be customized.
Feature
- Center hole is easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
- Low friction, long life,Low torque, smooth rotation
- Transmit data and analog signal,compatible with data bus protocol
Optional
- Through hole size
- Circuit and rating
- Installation way
- IP protection grade
Application
- Radar Antenna
- Welding robotics
- Film package machine
Specification

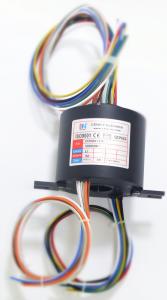

| ECN025-1215 Specification | Picture |
| Current | 12*15A |  |
| Voltage | 380VAC |
| Resistance fluctuation | ≤70mΩ |
| Dielectric strength | ≥1000V@50Hz |
| Insulation resistance | 500MΩ@500VDC |
| Operating Speed | 0-300 rpm |
| Contact Material | Precious Metals |
| Operating temperature | -20~+60℃ |
| Through bore size | 25.4mm |
| IP protection grade | IP54 |

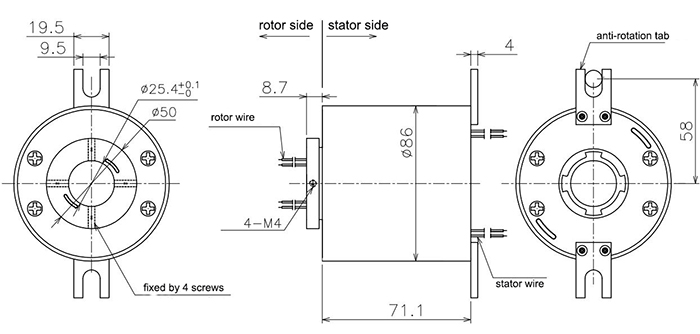

Outline drawing
Reduce costs
Improve manufacturing efficiency. You asked, we delivered.CENO Electronics offers high-performance 360° rotation solutions,
refined over years of helping customers with thousands of system designs in hundreds of industries.
How do you determine which is best for you?
Step one: Reference our slip ring products parameter chart, a matrix showing the key performance for CENO's products.
Keep in mind that if you don’t see the device needed for your project, we can work together on a derivative or a full custom device to fit your needs.
Step two: Fill out the custom form with necessary specification info, so we will be able to provide an evaluation solution, quote or more information on how we can make required slip ring easier.
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
