Home > Waterproof Slip Ring >

14 Channel Numbers Waterproof Slip Ring FLRY-B Automobile Wire 10 * 10A

CENO Electronics Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

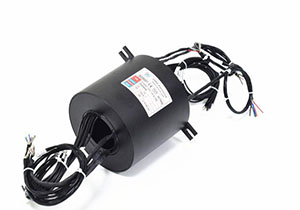

14 Channel Numbers Waterproof Slip Ring FLRY-B Automobile Wire 10 * 10A

Brand Name : CENO

Model Number : ECN050-10P2-14S-A-IP65

Certification : CE,RoHS,ISO9001,UL

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 1000pcs per month

Delivery Time : 1 week

Packaging Details : Carton/As request

Current : 10*10A ,14*signal

Channel number : 14

Through bore size : Ø50mm

Protection Grade : IP65

Contact Now

FLRY-B automobile Wire 14 Channel Numbers Waterproof Slip Ring In Automation equipment Application

The waterproof slip ring is specially developed for underwater and various harsh environments,it can work under water100m and load -bearing ,high temperature resistance, anti-corrosion.according to different fields,the protection grade IP65-IP68 is optional.

Features

  • Protection grade up to IP65
  • Transmit power and signal simultaneously
  • Working temperature can be - 40 ℃ to + 85 ℃ operation

Applications

  • Automation equipment
  • Communication equipment
  • Filling machine
  • Drilling platform

Optional

  • Circuit number
  • Current rating
  • IP protection grade
  • Signal type

Specification

ECN050-10P2-14S-A-IP65 Specification Picture
Current 10*10A ,14*signal 14 Channel Numbers Waterproof Slip Ring FLRY-B Automobile Wire 10 * 10A
Through bore size Ø50mm
Protection Grade IP65
Working speed 0~100rpm
Contact material Precious metal
Rating Voltage 380VAC
Insulation resistance

500MΩ@500VDC(power)

300MΩ@100VDC(signal)

Dielectric strength

≥1000VAC@50Hz(power)

≥1000VAC@50Hz(signal)

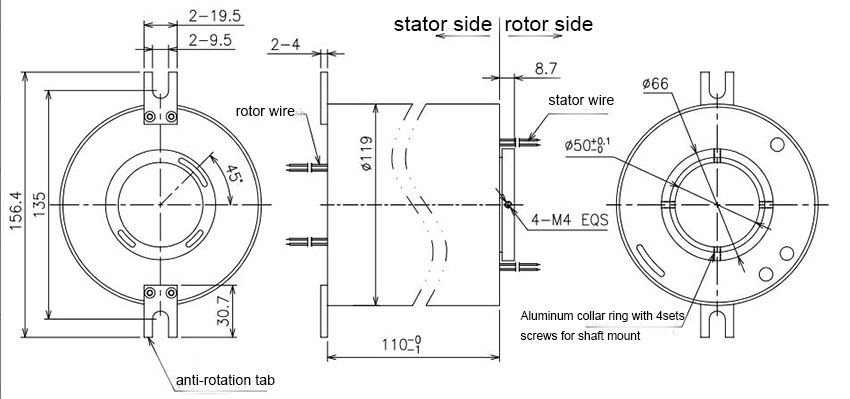

Outline Drawing

14 Channel Numbers Waterproof Slip Ring FLRY-B Automobile Wire 10 * 10A

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

14 Channel Numbers Waterproof Slip Ring FLRY-B Automobile Wire 10 * 10A

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

14 Channel Numbers Waterproof Slip Ring FLRY-B Automobile Wire 10 * 10A

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

14 Channel Numbers Waterproof Slip Ring FLRY-B Automobile Wire 10 * 10A

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.


Product Tags:

electrical slip ring



signal slip ring


China 14 Channel Numbers Waterproof Slip Ring FLRY-B Automobile Wire 10 * 10A wholesale

14 Channel Numbers Waterproof Slip Ring FLRY-B Automobile Wire 10 * 10A Images
